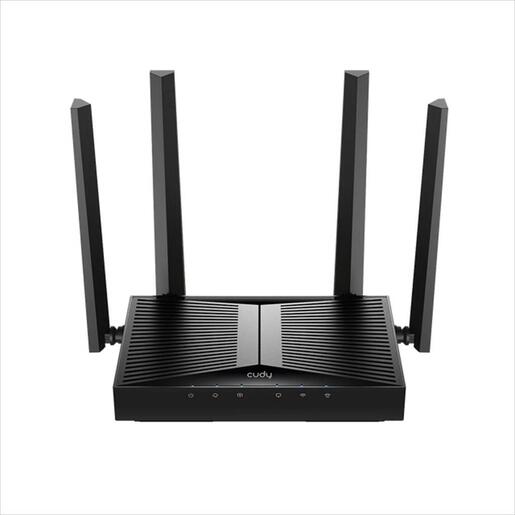

NET ROUTER WIRELESS DUAL BAND Wi-Fi 7 BE3600 CUDY WR3600, w/4 antennas, 1x WAN 2.5G port, 4x LAN 100/1000 portsID EK000894731

Model name: CUDY WR3600

Specifications:

• CPU: 2.0 GHz Quad-Core, ARM Cortex-A7
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 512 MB (4 Gbit) DDR3L
• Wireless:
  • 5 GHz Wi-Fi Speed: 2882 Mbps
  • 2.4 GHz Wi-Fi Speed: 688 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 4× Fixed
  • 5 GHz Antenna Gain Max: 5.5 dBi
  • 2.4 GHz Antenna Gain Max: 5.4 dBi
  • FEM or PA/LNA:
    • 5 GHz: 2× External
    • 2.4 GHz: 2× Internal
  • Beamforming: True
  • Range Performance: Max 220 m (722 ft)
  • Wall Performance:
    • Two wooden walls with thickness < 10 cm (4")
    • One concrete wall with thickness < 20 cm (7") or two concrete walls with thickness < 10 cm (4")

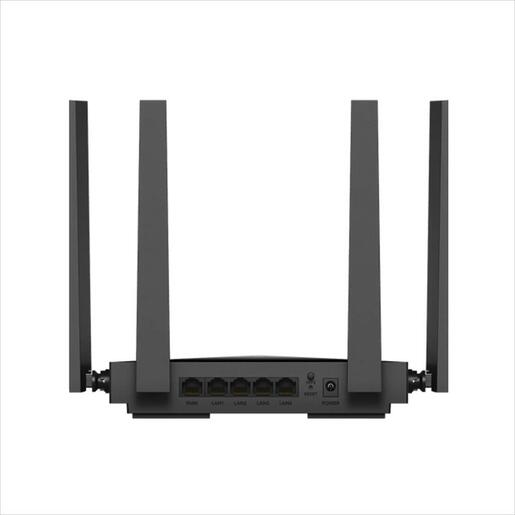

• Interfaces:
  • Gigabit RJ45 Ports: 5
  • Ethernet Notes: 1× WAN port, the rest are LAN ports
  • LED:
    • Power
    • Internet
    • WAN
    • LAN
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
  • Physical Buttons:
    • WPS Button
    • Reset Button
• Power:
  • Power Methods: DC
  • DC: 12V 1A
  • Power Adapter:
    • Input: 100 ~ 240 V, 50/60 Hz AC
    • Output: 12V 1A DC
  • Max Power Consumption: 9W
• Reliability:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
