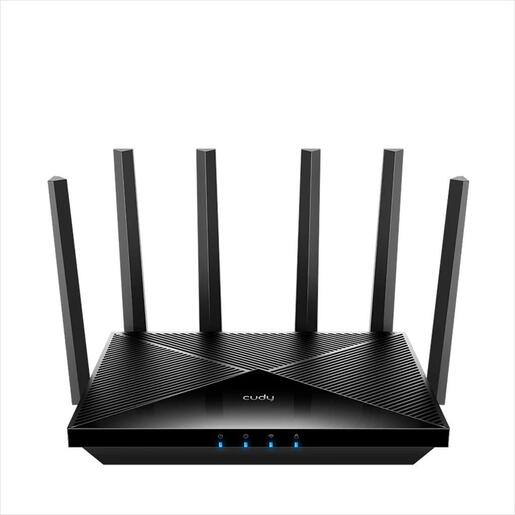

NET ROUTER WIRELESS DUAL BAND Wi-Fi 7 BE6500 CUDY WR6500H, w/6 antennas, 1x 2.5G port, 4x LAN 100/1000 portsID EK000894739

Model name: CUDY WR6500H

Specifications:

• CPU:
  • CPU Details: 2.0 GHz Quad-core, ARM Cortex-A7
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 512 MB (4 Gbit) DDR4
• Wireless:
  • 5 GHz Wi-Fi Speed: 5765 Mbps
  • 2.4 GHz Wi-Fi Speed: 688 Mbps
  • 5 GHz Wi-Fi Streams: 4T4R (4×4 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 6× Fixed
  • 5 GHz Antenna Gain Max: 5.27 dBi
  • 2.4 GHz Antenna Gain Max: 5.19 dBi
  • FEM or PA/LNA:
    • 5 GHz: 4× External
    • 2.4 GHz: 2× Internal
  • Beamforming: True
  • Range Performance: Max: 240 m (787 ft)
  • Wall Performance:
    • Two wooden walls with thickness < 10 cm (4'')
    • One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

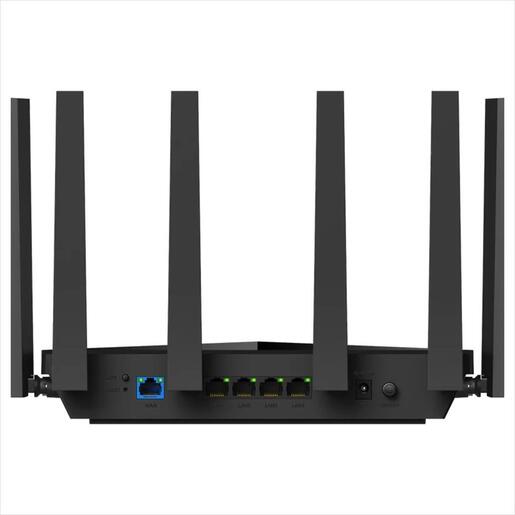

• Interfaces:
  • 2.5G RJ45 Ports: 1
  • Gigabit RJ45 Ports: 4
  • Ethernet Notes: The 2.5G port is WAN port, the Gigabit ports are LAN ports
  • LED Indicators:
    • System
    • Internet
    • Wi-Fi
    • WPS
  • Physical Buttons: Power On/Off Button, WPS Button, Reset Button
• Power:
  • Power Input: DC Jack
  • Power Methods: DC
  • DC: 12V 1.5A
  • Power Adapter:
    • Input: 100 ~ 240 V, 50/60 Hz AC
    • Output: 12V 1.5A DC
  • Max Power Consumption: 17W
• Reliability/Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
