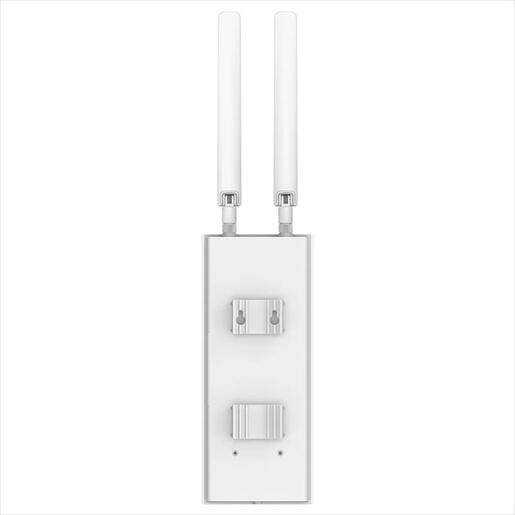

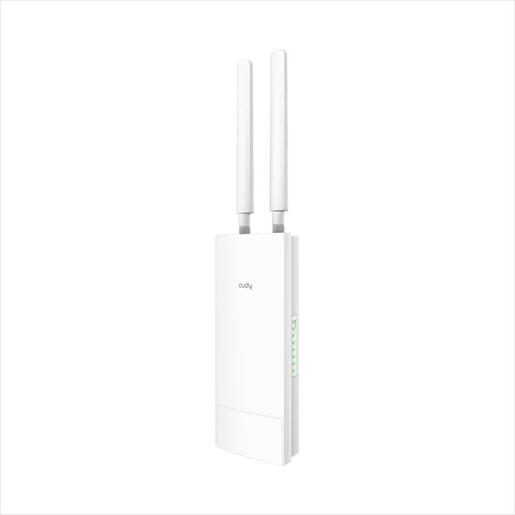

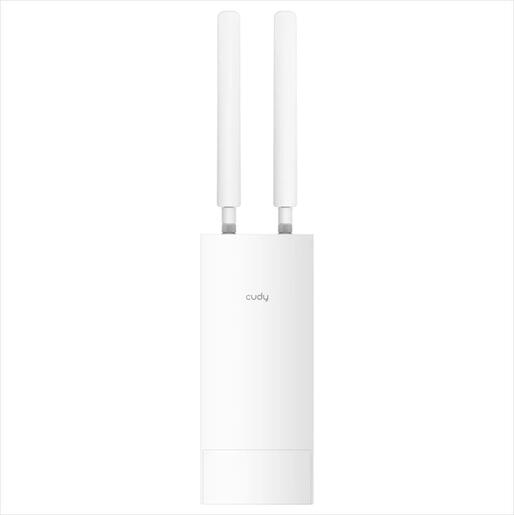

NET ROUTER WIRELESS OUTDOOR CUDY LT500 AC1200 4G LTE Cat.4 w/2 antennas, 1x WAN/LAN portID EK000697026

Model name: CUDY LT500

Specification :

1. CPU Chipset: MT7628
2. CPU Details: 580 MHz Single-Core, MIPS24KEC
3. Memory/Storage:
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR2
4. EU Version Cellular:
• Suitable Region: Europe, Middle East, Africa
• Max DL Speed: 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
• Max UL Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
• Advanced: DL 2×2 MIMO
• Cellular Bands: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41, WCDMA: B1/5/8
5. Wireless:
• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Internal
• Beamforming: True
• Range Performance: Max: 170 m (558 ft), Park: 150 m (492 ft), Street: 50 m (164 ft), Woods: 30 m (98 ft)
• Wall Performance: NA

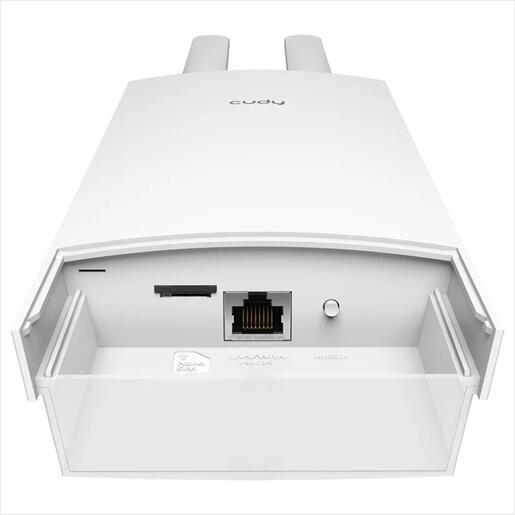

6. Interfaces:
• Physical Buttons: Reset Button
• 10/100 Mbps RJ45 Ports: 1
• Ethernet Notes: Accepts PoE powering
7. LED: System, Internet, LAN, Wi-Fi, Cellular Signal Strength
8. Power Input: PoE via Ethernet Port
9. Power:
• Power Methods: Passive PoE
• Passive PoE: 24V
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 24V 0.5A DC
• Max Power Consumption: 10W
• Idle Power Consumption: 5W
10. Reliability:
• Lightning/Surge Protection: DM 2kV, CM 4kV
• ESD Contact Protection: 4kV
• ESD Air Protection: 8kV
11. Environment:
• Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
• Extend Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉) with Industrial Grade SIM Card
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 0% ~ 100% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
