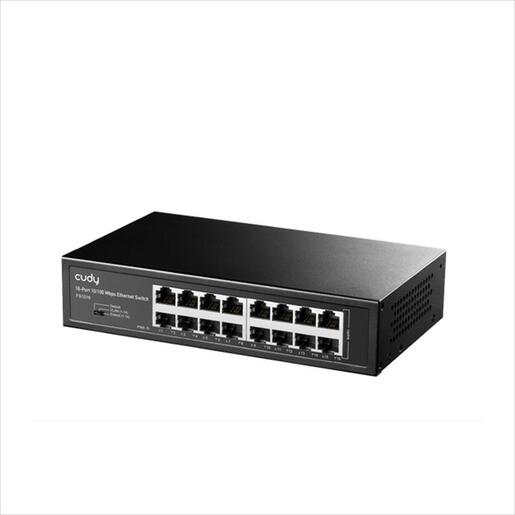

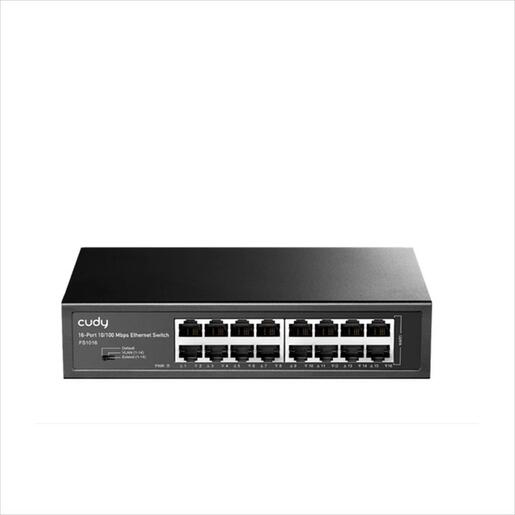

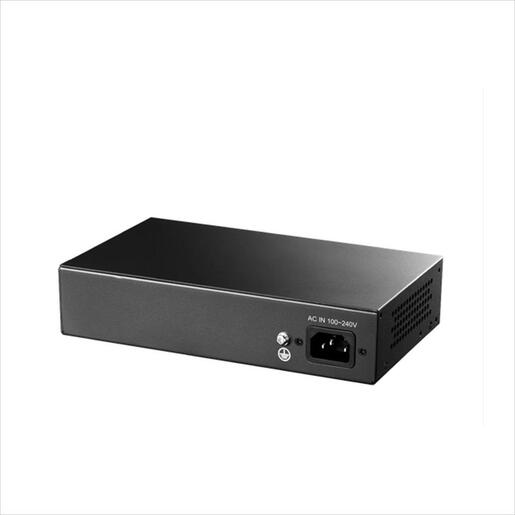

NET Switch CUDY 16-port 10/100 FS1016, metal caseID EK000696608

Model name: CUDY FS1016

Specifications:

_x000D_
• Interfaces: 10/100 Mbps RJ45 Ports: 16
_x000D_
• Extend Mode Ports: #1~#14
_x000D_
• VLAN Mode Ports: #1~#14
_x000D_
• LED: Power, Link/ACT of Each Ethernet Port
_x000D_
• Power Input: AC Inlet
_x000D_
• Physical Buttons: VLAN/Default/Extend DIP Switch
_x000D_
• Performance – Copper Speed and Distance: _x000D_
  _x000D_
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  _x000D_
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  _x000D_
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
  _x000D_
  _x000D_
_x000D_
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
_x000D_
• MAC Address Table: 8192
_x000D_
• Max Switching Capacity: 3.2 Gbps
_x000D_
• Max Forwarding Rate: 2.38 Mpps
_x000D_
• Jumbo Frame: 2 KB
_x000D_
• Packet Buffer: 2 Mbit
_x000D_
• Power – Basic Power Saving: True
_x000D_
• Power Methods: AC
_x000D_
• AC: 90-260V~, 50/60Hz
_x000D_
• Max Power Consumption: 2.0W
_x000D_
• Idle Power Consumption: 0.8W
_x000D_
• Switching – 802.3 Protocols: _x000D_
  _x000D_
  • 802.3i 10BASE-T
  _x000D_
  • 802.3u 100BASE-TX
  _x000D_
  • 802.3x Flow Control
  _x000D_
  _x000D_
_x000D_
• Reliability – Grounding Methods: Three-Prong Plug, Grounding Point
_x000D_
• EMS: _x000D_
  _x000D_
  • IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
  _x000D_
  • IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
  _x000D_
  _x000D_
_x000D_
• Environment: _x000D_
  _x000D_
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  _x000D_
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  _x000D_
  • Operating Humidity: 10% ~ 90% non-condensing
  _x000D_
  • Storage Humidity: 5% ~ 90% non-condensing
  _x000D_
  _x000D_
_x000D_
• Casing Material: Metal
_x000D_
