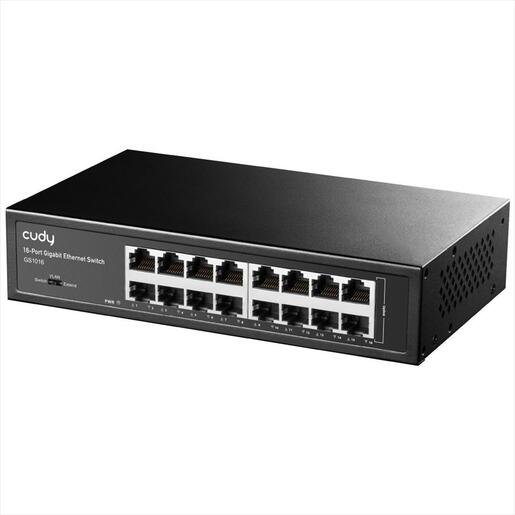

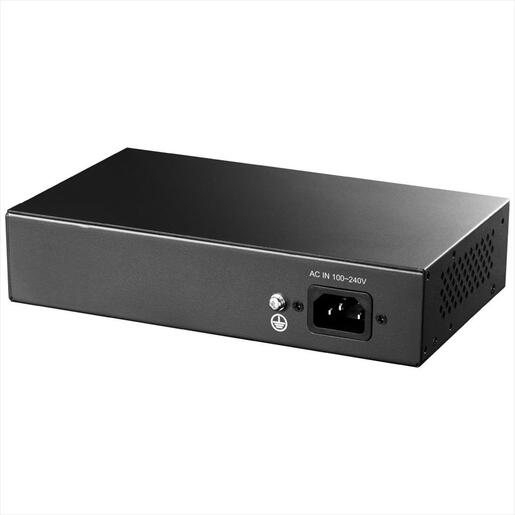

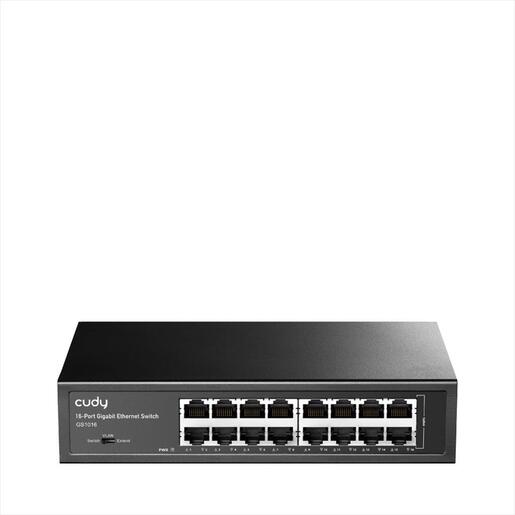

NET Switch CUDY 16-port Gigabit rackmount (19"), GS1016ID EK000696105

Model Name: CUDY GS1016

Specification :

_x000D_
• Product Name: 16-Port Gigabit Ethernet Switch
_x000D_
• Product Model: GS1016
_x000D_
• Power Supply: Built-in power supply
_x000D_
• Voltage Range: AC100~240V
_x000D_
• Consumption: <15W
_x000D_
• Speed: 1-16 Port: 10/100/1000Mbps
_x000D_
• Transmission Distance: 100 meters (328 ft)
_x000D_
• Ethernet Standard: IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab
_x000D_
• Switching Capacity: 32G
_x000D_
• MAC Address: 8K MAC address table
_x000D_
• Dimension (L x W x H): 200 x 118 x 44 mm
_x000D_
• VLAN (1-14 Ports):_x000D_
  _x000D_
  • Port Isolation: Downlink designated ports are isolated from each other, only transmit data with the uplink port.
  _x000D_
  • Default: Standard Switch - All ports communicate freely
  _x000D_
  • Extend (1-14 Ports): Link Extension - The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
  _x000D_
  _x000D_
_x000D_
• LINK/ACT:_x000D_
  _x000D_
  • On: Green - The port is connecting
  _x000D_
  • Blinks: - The port is receiving or transmitting data
  _x000D_
  • Off: - The port is not linked successfully with the device
  _x000D_
  _x000D_
_x000D_
• Transfer Rate:_x000D_
  _x000D_
  • 14,880 pps for 10Mbps
  _x000D_
  • 148,800 pps for 100Mbps
  _x000D_
  • 1,488,000 pps for 1000Mbps
  _x000D_
  _x000D_
_x000D_
• Environment:_x000D_
  _x000D_
  • Operating Temperature: 0℃ ~ 40℃
  _x000D_
  • Storage Temperature: -40℃ ~ 70℃
  _x000D_
  • Operating Humidity: 10% ~ 85% non-condensing
  _x000D_
  • Storage Humidity: 5% ~ 85% non-condensing
