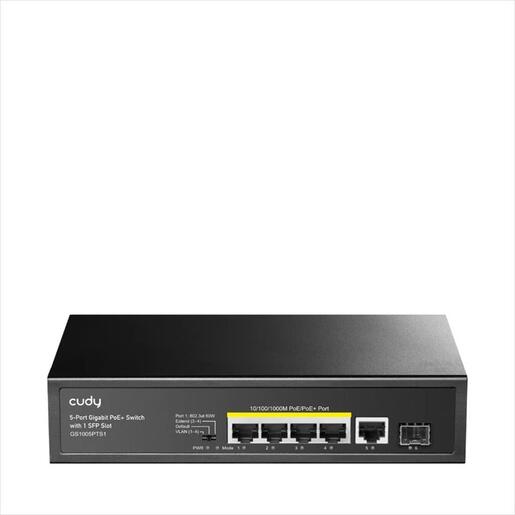

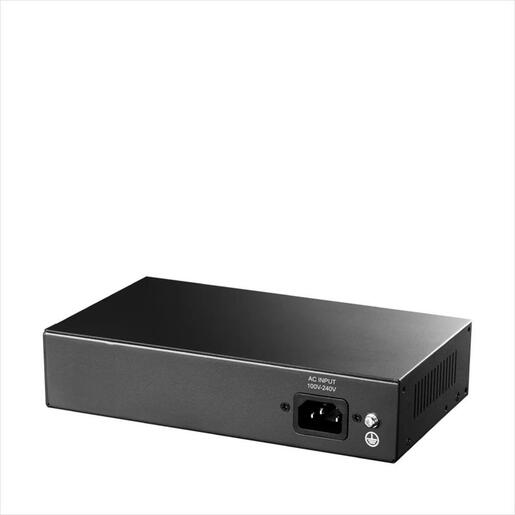

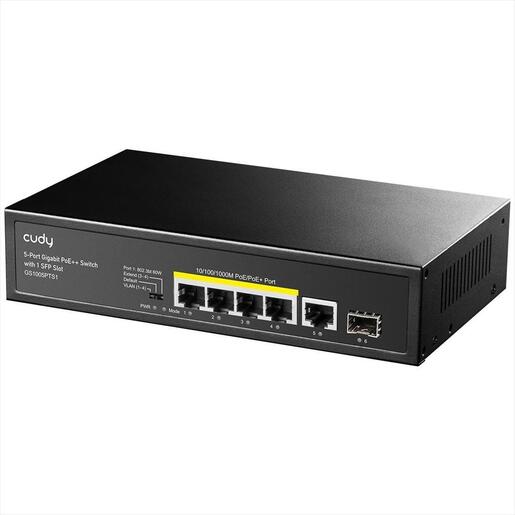

NET Switch CUDY 5-port Gigabit 4xPOE+ 120W, 1x SFP, GS1005PTS1ID EK000696396

Model name: CUDY GS1005PTS1

Specification :

• Interfaces:
• Physical Buttons: VLAN/Default/Extend DIP Switch
• 1.25G SFP Slots: 1
• Gigabit RJ45 Ports: 1
• Gigabit RJ45 PoE Ports: 4
• Max Power on a Single PoE Port:
• Port 1: 60W
• Port 2~4: 30W
• PoE Port Notes:
• PoE port #1 supports 802.3at 60W output, and the rest support 30W 802.3at/af standards.
• Extend Mode Ports: #3~#4
• VLAN Mode Ports: #1~#4
• LED Indicators:
• Power
• DIP Mode (SW)
• Link/ACT of Each Ethernet Port
• Power Input: AC Inlet
• Performance Copper Speed and Distance:
• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
• Optical Spec and Distance: Depends on the Installed Optical Module
• MAC Address Table: 2048
• Max Switching Capacity: 12 Gbps
• Max Forwarding Rate: 8.928 Mpps
• Jumbo Frame: 9 KB
• Packet Buffer: 1 Mbit
• Power:
• Power Methods: AC
• AC: 100-240V 50/60Hz
• Max Power Consumption: 120W
• Max Power Excluding PoE: 5W
• Switching 802.3 Protocols:
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE
• Reliability:
• Grounding Methods: Three-Prong Plug
• Environment:
• Operating Temperature: -10~50 ℃ (14~122 ℉)
• Storage Temperature: -40~70 ℃ (-40~158 ℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing
