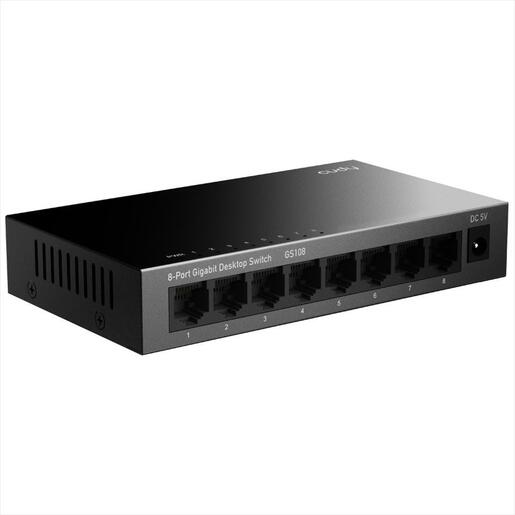

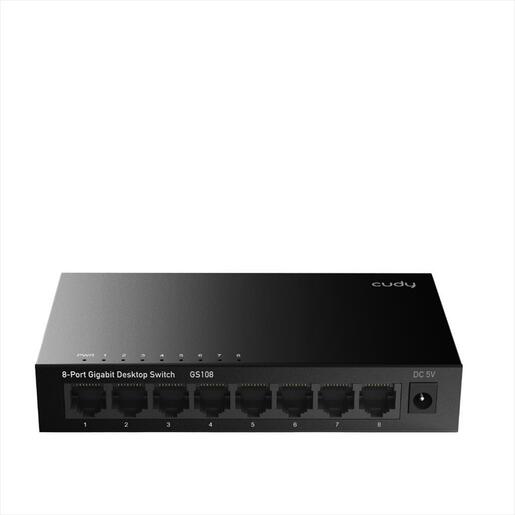

NET Switch CUDY 8-port Gigabit GS108, metalID EK000696451

Model Name: CUDY GS108

Specifications

• Ports: 8 10/100/1000M RJ-45 adaptive ports
• Switching Capacity: 16 Gbps
• Throughput: 11.9 Mpps
• Packet Buffer: 2.5M
• MAC Address: 1K
• Jumbo Frame: 2K
• Transfer Mode: Store and forward
• MTBF: 100000 hours

Network Protocols

• IEEE802.3 (10Base-T)
• IEEE802.3u (100Base-TX)
• IEEE802.3ab (1000Base-TX)
• IEEE802.3x (Flow control)

Network Medium

• 10Base-T: Cat3,4,5 or above UTP (≤100m)
• 100Base-TX: Cat5 or above UTP (≤100m)
• 1000Base-TX: Cat5 or above UTP (≤100m)

Working Environment

• Working Temperature: -10~50°C
• Storage Temperature: -40~70°C
• Working Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~90%, non-condensing
• Working Height: Maximum 10,000 feet
• Storage Height: Maximum 10,000 feet

Power Voltage

• Power Input Voltage: AC 100-240 V
• Switch Input Voltage: DC 5V
