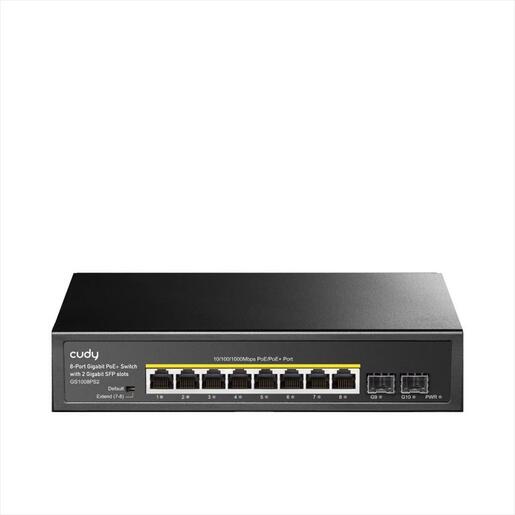

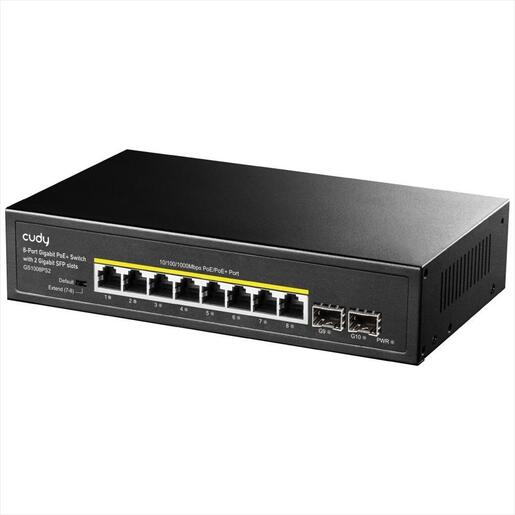

NET Switch CUDY 8-port Gigabit POE 120W, 2x SFP, GS1008PS2ID EK000696100

Model name: CUDY GS1008PS2

Specification :

• Interfaces:
• Physical Buttons: Default/Extend DIP switch
• 1.25G SFP Slots: 2
• Gigabit RJ45 PoE Ports: 8
• Max Power on a Single PoE Port: 30W
• PoE Port Notes: PoE ports support 802.3at/af standards.
• Extend Mode Ports: #7~#8
• LED Indicators:
• Power
• DIP Mode (SW)
• Link/ACT of Each Ethernet Port

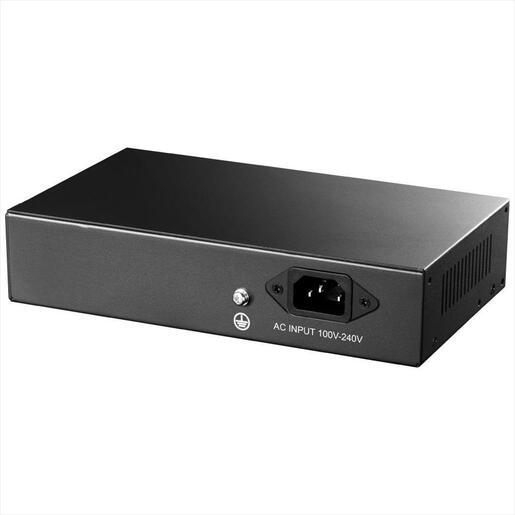

• Power Input: AC Inlet
• Performance Copper Speed and Distance:
• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
• MAC Address Table: 2048
• Max Switching Capacity: 20 Gbps
• Max Forwarding Rate: 14.88 Mpps
• Jumbo Frame: 9 KB
• Packet Buffer: 2 Mbit
• Power:
• Power Methods: AC
• AC: 100-240V 50/60Hz
• Max Power Consumption: 120W
• Max Power Excluding PoE: 6W
• Switching 802.3 Protocols:
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE
• Reliability:
• Grounding Methods: Three-Prong Plug
• Environment:
• Operating Temperature: -10~50 ℃ (14~122 ℉)
• Storage Temperature: -40~70 ℃ (-40~158 ℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing
