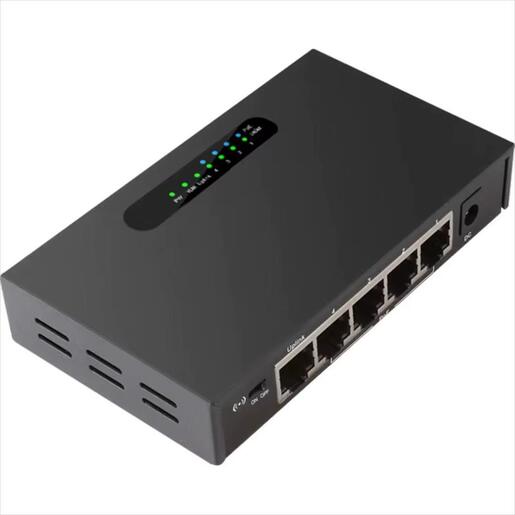

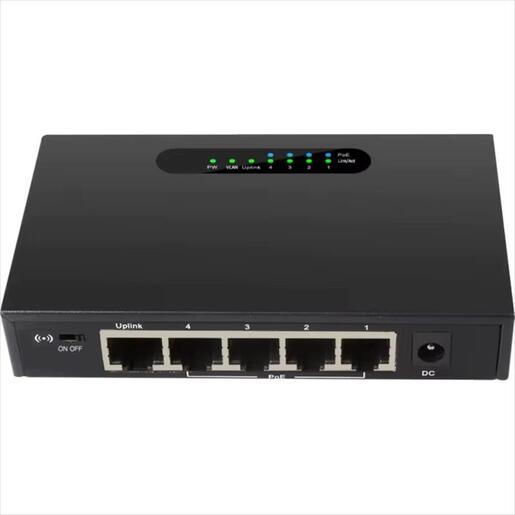

NET Switch DIEWU 5-port 10/100/1000, TXE038 MT7530DU+IP804A, 4x1G POE + 1xUplink, METAL BLACKID EK000696844

Model name: DIEWU TXE038

Specification :

_x000D_
• Model Name: TXE038
_x000D_
• Chipset: MT7530DU + IP804A
_x000D_
• Standards and Protocols: IEEE802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1q, IEEE 802.3at, IEEE 802.3 af
_x000D_
• Interface: 5x10/100Mbps auto-negotiation ports
_x000D_
• Netzwerk Media:_x000D_
  _x000D_
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  _x000D_
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  _x000D_
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
  _x000D_
  _x000D_
_x000D_
• Transfer Method: Store-and-Forward
_x000D_
• MAC Address Table: 2K
_x000D_
• Switching Capacity: 10Gbps
_x000D_
• Packet Forwarding Rate: 7.44 Mpps
_x000D_
• PoE Ports (RJ45): 4 * PoE ports compliant with 802.3at/af
_x000D_
• Power Pin Assignment: 1/2(+), 3/6(-)
_x000D_
• PoE Budget: 60W
_x000D_
• Indicators:_x000D_
  _x000D_
  • Per Device: Power, VLAN
  _x000D_
  • Per Port: Link/Activity
  _x000D_
  _x000D_
_x000D_
• Power Supply: DC 52V, 1.25A External Power
_x000D_
• Power Consumption: Maximum (PoE on): 63W (220V/50Hz)
_x000D_
• Dimensions (W x D x H): 123*70*23mm
_x000D_
• Environment:_x000D_
  _x000D_
  • Operating Temperature: 0℃ ~ 45℃
  _x000D_
  • Storage Temperature: -40℃ ~ 70℃
  _x000D_
  • Operating Humidity: 10% ~ 90% non-condensing
  _x000D_
  • Storage Humidity: 5% ~ 90% non-condensing
