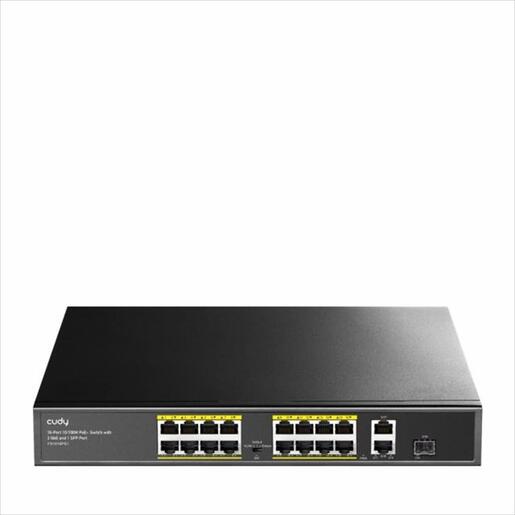

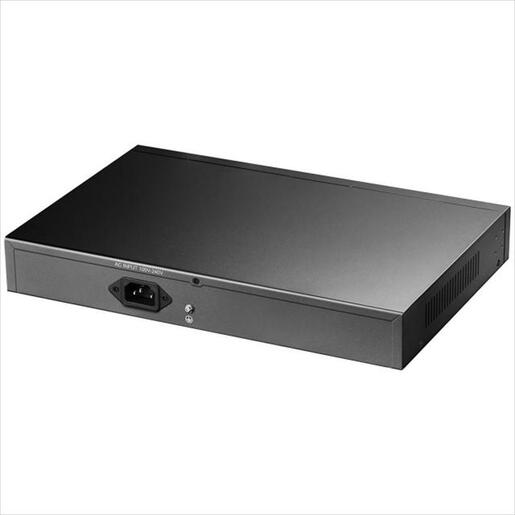

NET Switch POE+ CUDY 16-port 10/100, 2x Uplink GbE, SFP, FS1018PS1, 200W, Metal Rack-MountID EK000696714

Model Name: CUDY FS1018PS1

Specification

• Power Supply: 200W PoE power supply, up to 30W per port
• Ports:
  • 2 x 10/100/1000M uplink ports
  • 1 x SFP port
  • 16 x 10/100M PoE+ ports
• CCTV Mode: Supports PoE power up to 250m
• VLAN Mode: Isolates each PoE port for security
• Compliance: IEEE 802.3at compliant / IEEE 802.3af
• Setup: Plug&play, no configuration needed
• Watchdog: Reactivates abnormal PD by resuming PoE power supply
• Power: AC100~240V
• Consumption: 190W for 16 PoE ports
• Network Speed:
  • 1-16 Port: 10/100 Mbps
  • G17-G18 Port: 10/100/1000 Mbps
  • G19 Port: SFP 1.25 Gbps
• Transmission Distance: 100 meters (328 ft) for RJ-45
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af/at
• Capacity: 7.2 Gbps
• Data Transfer:
  • 14880 pps for 10 Mbps
  • 148800 pps for 100 Mbps
  • 1488000 pps for 1000 Mbps
• MAC Address Table: 4K
• Dimensions: 280 x 180 x 44 mm
