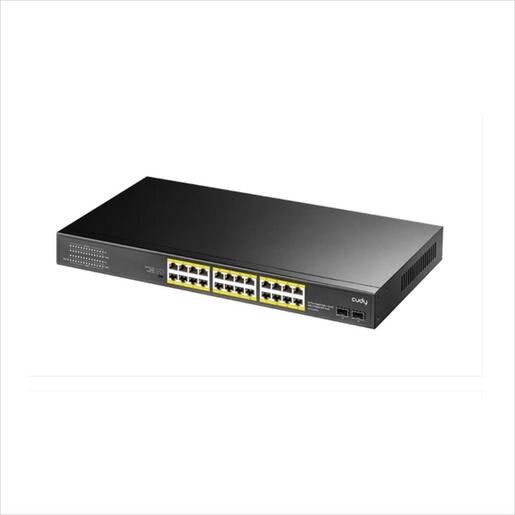

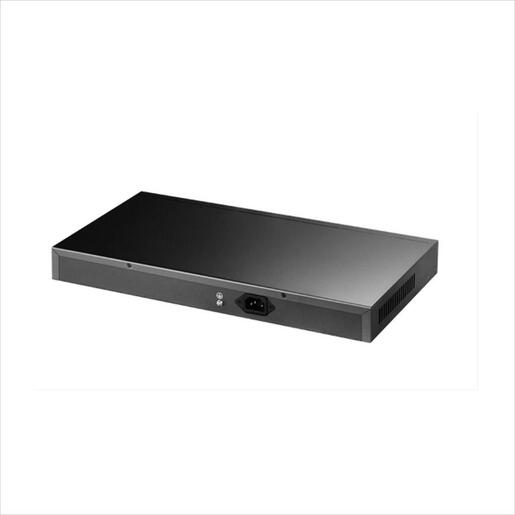

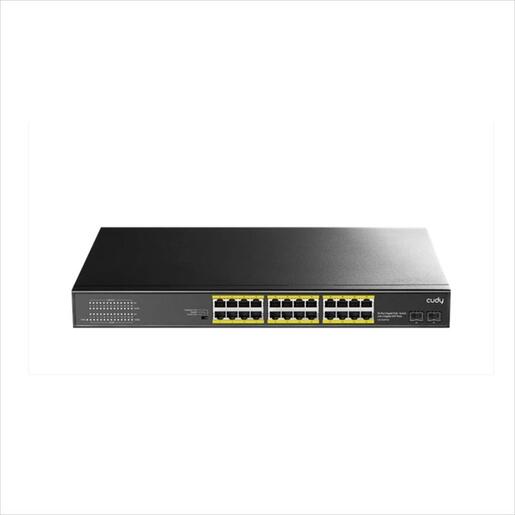

NET Switch POE+ CUDY 24-port 10/100/1000, 2x UPLINK SFP, 2x Uplink GbE, GS1028PS2, 300W, Metal Rack-MountID EK000696939

Model name: CUDY GS1028PS2

Specifications:

_x000D_
• Interfaces:_x000D_
  _x000D_
  • 1.25G SFP Slots: 2
  _x000D_
  • Gigabit RJ45 Ports: 24
  _x000D_
  • Gigabit RJ45 PoE Ports: #1~#24
  _x000D_
  _x000D_
_x000D_
• Max Power on a Single PoE Port: 30W
_x000D_
• PoE Port Notes: Complies with IEEE 802.3at/af standards
_x000D_
• Extend Mode Ports: #17~#24
_x000D_
• VLAN Mode Ports: #1~#24
_x000D_
• LED Indicators: Power, Speed/Link/ACT of Each Ethernet Port
_x000D_
• Power Input: AC Inlet
_x000D_
• Performance – Copper Speed and Distance:_x000D_
  _x000D_
  • Cat. 3 or higher: 100m at 10 Mbps
  _x000D_
  • Cat. 5 or higher: 100m at 100 Mbps
  _x000D_
  • Cat. 5e or higher: 100m at Gigabit
  _x000D_
  • Cat. 5e or higher: 250m at 10 Mbps (Extend Mode only)
  _x000D_
  _x000D_
_x000D_
• Optical Spec and Distance: Depends on the installed optical module
_x000D_
• MAC Address Table: 8192
_x000D_
• Max Switching Capacity: 52 Gbps
_x000D_
• Max Forwarding Rate: 38.68 Mpps
_x000D_
• Power:_x000D_
  _x000D_
  • Power Method: AC
  _x000D_
  • AC Input: 100-240V~, 50/60Hz
  _x000D_
  • Power Supply: 300W
  _x000D_
  • Max Power Excluding PoE: 10W
  _x000D_
  _x000D_
_x000D_
• Supported Protocols:_x000D_
  _x000D_
  • 802.3i 10BASE-T
  _x000D_
  • 802.3u 100BASE-TX
  _x000D_
  • 802.3ab 1000BASE-T
  _x000D_
  • 802.3z 1000BASE-X
  _x000D_
  • 802.3x Flow Control
  _x000D_
  • 802.3af PoE
  _x000D_
  • 802.3at PoE
  _x000D_
  _x000D_
_x000D_
• Grounding: Three-Prong Plug
_x000D_
• EMS: IEC/EN 61000-4-5, Level 4 Surge (Power: DM 2kV, CM 4kV)
_x000D_
• Environmental Specs:_x000D_
  _x000D_
  • Operating Temperature: 0~40 ℃ (32~104 ℉)
  _x000D_
  • Storage Temperature: -40~70℃ (-40~158 ℉)
  _x000D_
  • Operating Humidity: 10~90% non-condensing
  _x000D_
  • Storage Humidity: 10~95% non-condensing
