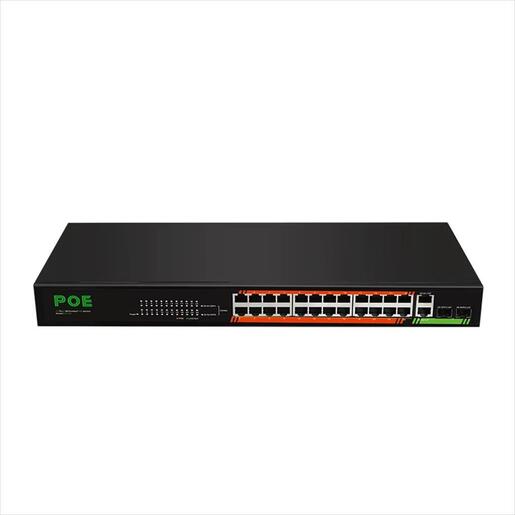

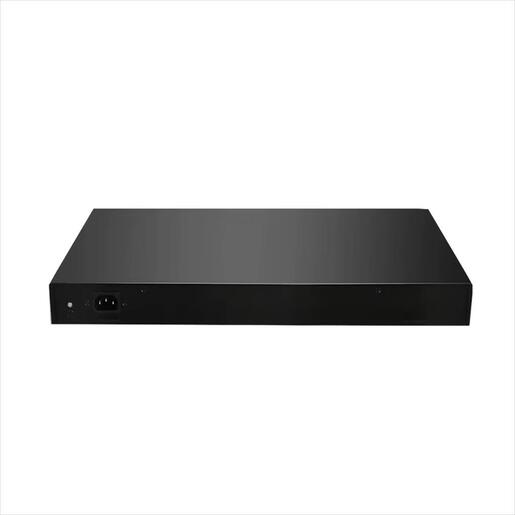

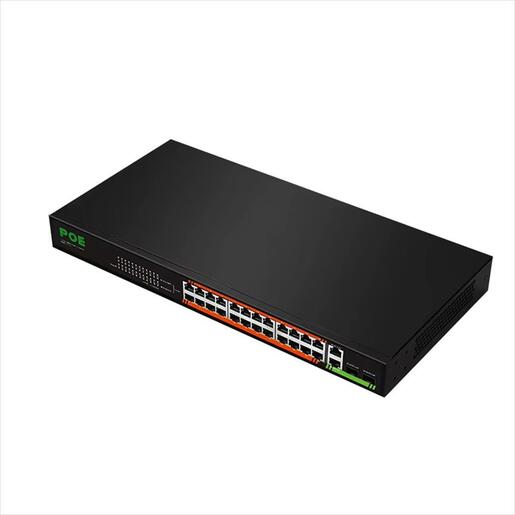

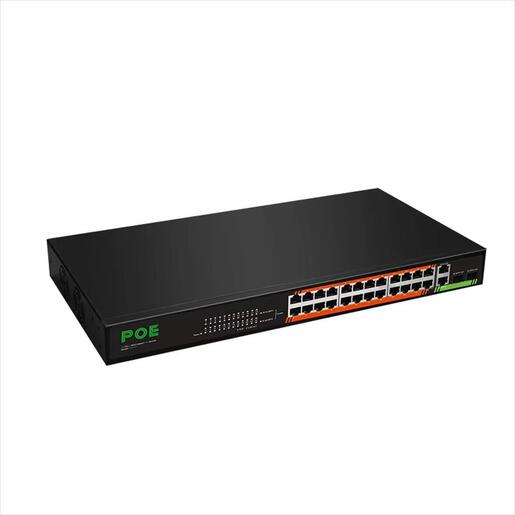

NET Switch POE DIEWU 24-port 10/100 +2 1G UPLINK ports (24 POE / 300W) TXE192ID EK000697143

Model name: DIEWU TXE192

Specification :

_x000D_
• Chipset: IP1829A + IP1001C * 2 + IP808AR * 3
_x000D_
• Standards and Protocols: IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
_x000D_
• Interface:_x000D_
  _x000D_
  • 24 x 10/100Mbps Auto-Negotiation ports
  _x000D_
  • 2 x 10/100/1000Mbps Auto-Negotiation ports
  _x000D_
  • 2 x 1000Mbps SFP ports
  _x000D_
  _x000D_
_x000D_
• Network Media:_x000D_
  _x000D_
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  _x000D_
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  _x000D_
  • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
  _x000D_
  • 1000Base-x
  _x000D_
  _x000D_
_x000D_
• Transfer Method: Store-and-Forward
_x000D_
• MAC Address Table: 16K
_x000D_
• Switching Capacity: 10.4Gbps
_x000D_
• Packet Forwarding Rate: 6.54Mpps
_x000D_
• Indicators:_x000D_
  _x000D_
  • Per Device: Power
  _x000D_
  • Per Port: Link/Activity (Green), PoE (Orange)
  _x000D_
  _x000D_
_x000D_
• Power Supply: 100-240VAC, 50/60Hz
_x000D_
• Power Consumption: Maximum: 295W
_x000D_
• Dimensions (W x D x H): 440 x 220 x 43mm
_x000D_
• Environment:_x000D_
  _x000D_
  • Operating Temperature: 0°C ~ 40°C
  _x000D_
  • Storage Temperature: -40°C ~ 70°C
  _x000D_
  • Operating Humidity: 10% ~ 90% non-condensing
  _x000D_
  • Storage Humidity: 5% ~ 90% non-condensing
