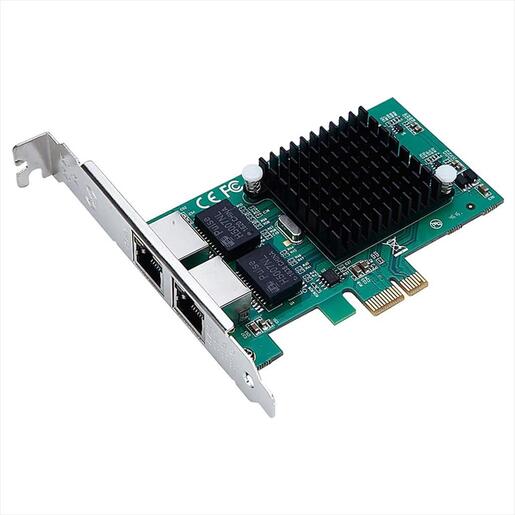

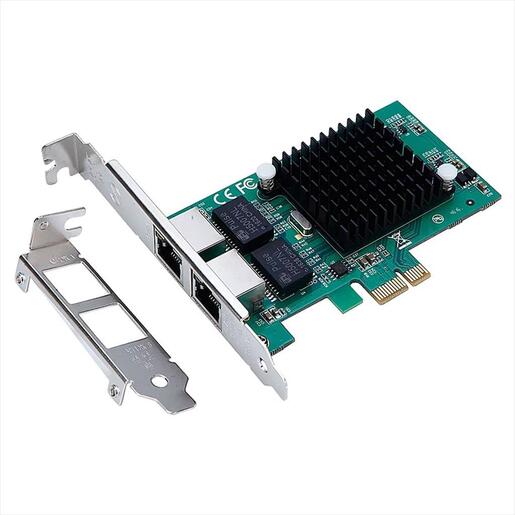

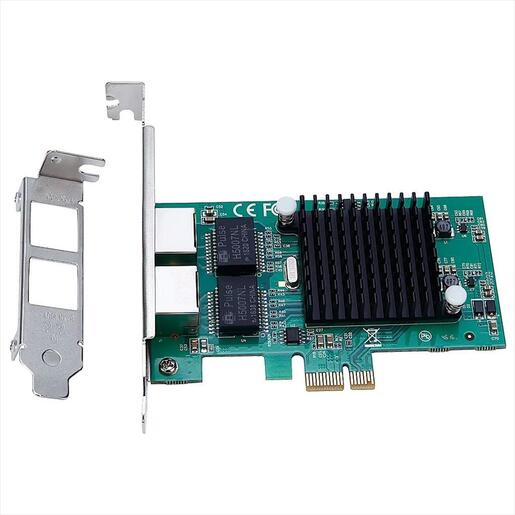

NET LAN PCIe 10/100/1000 2port, TXA205, Chipset: Intel 82576, LPID EK000696828

Model name: DIEWU TXA205

Specification :

• Chipset: Intel® 82576 Gigabit Controller
• Port Number: 2 x RJ45
• Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Data Rate: 10/100/1000Mbps
• Interface: PCI-Express 1x slot
• LED Indicator: 4 LED (10/100/1000Mbps - Link/Act)
• Dimension: 105.5 x 68.6 x 17.5 mm
• Supported Operating Systems:
  • Microsoft Windows Server 2003 (Enterprise, Datacenter - 32-/64-bit)
  • Microsoft Windows 2000
  • Red Hat Linux 2.4x or later (32-/64-bit)
  • FreeBSD 4.x or later
  • Novell Netware 5.x, 6.x
  • Sun Solaris x86, OS 8 and later
  • SCO Open Server 5, Open UNIX 8
• Environment:
  • Operating Temperature: 0°C - 55°C
  • Relative Humidity (Operating): 10% - 90% (non-condensing)
  • Storage Temperature: 0°C - 80°C
  • Relative Humidity (Storage): 5% - 90% (non-condensing)
