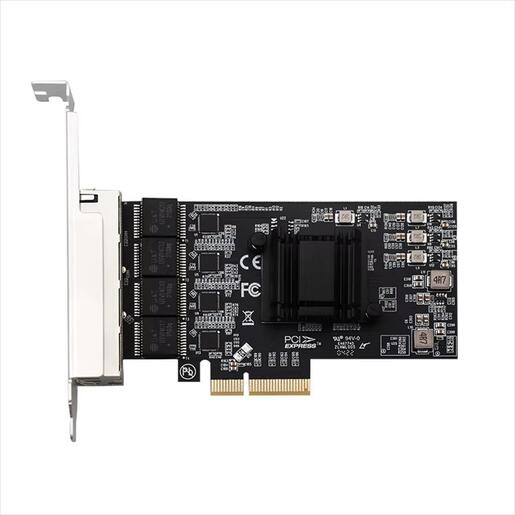

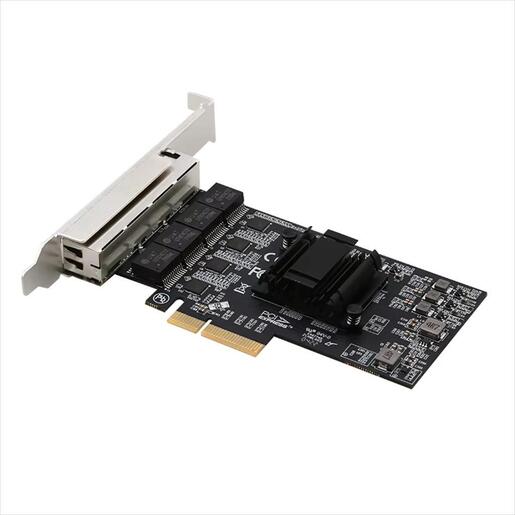

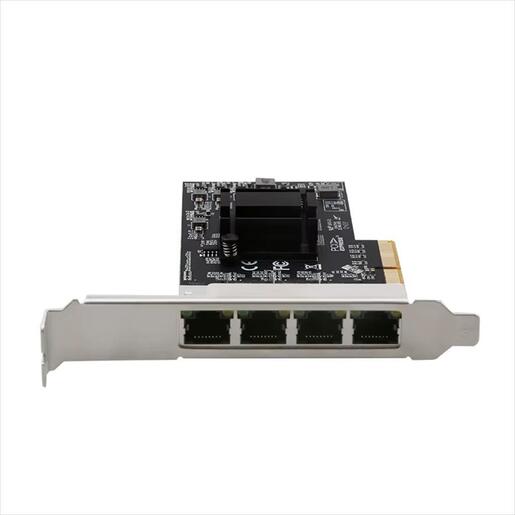

NET LAN PCIe 2.5Gbps 4port, DIEWU TXA197, Chipset: Realtek RT8125BID EK000696168

Model name: DIEWU TXA197

Specification :

• Chipset: RTL8125B
• Port Number: 4 x RJ45
• Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
• Network Media:
  • 10Base-T, Cat3 or above UTP
  • 1000Base-Tx, Cat5 or above UTP
• Data Rate: 10/100/1G/2.5Gbps
• Interface: PCI Express 1x Slot
• Bus Type: PCI Express 2.1 (5 GT/s)
• Bus Width: x4 lane PCI Express, operable in x8 and x16 slots
• LED Indicators:
  • 4 x Act LED (Orange)
  • 4 x 2.5G/1G Speed (Green)
• Dimension: 120 x 140 x 22 mm
• OS Compatibility:
  • Windows® 7, 8.x, 10, 11
  • Windows Server® 2008 R2, 2012, 2016
  • Linux 2.6.x to 5.x
• Environment:
  • Operating Temperature: 0℃ - 55℃
  • Operating Humidity: 10% - 90% (non-condensing)
  • Storage Temperature: -10℃ - 70℃
  • Storage Humidity: 10% - 90% (non-condensing)
• System and Cable Requirements:
  • PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x4, x8, x16)
• Power Consumption: 2.5Gbps – 3.3W (3.3V/1A)
