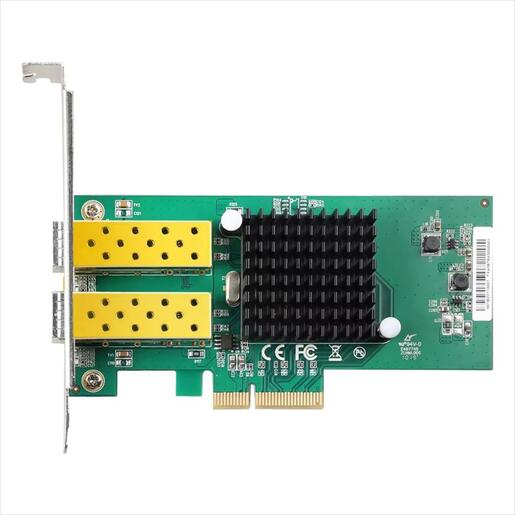

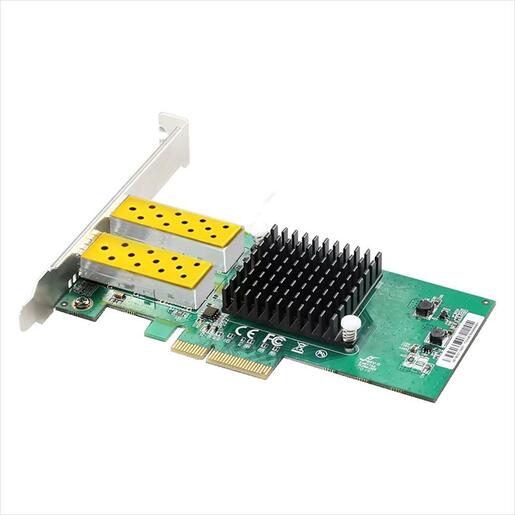

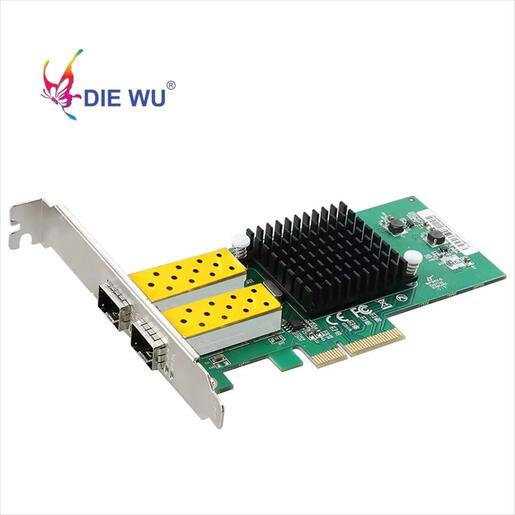

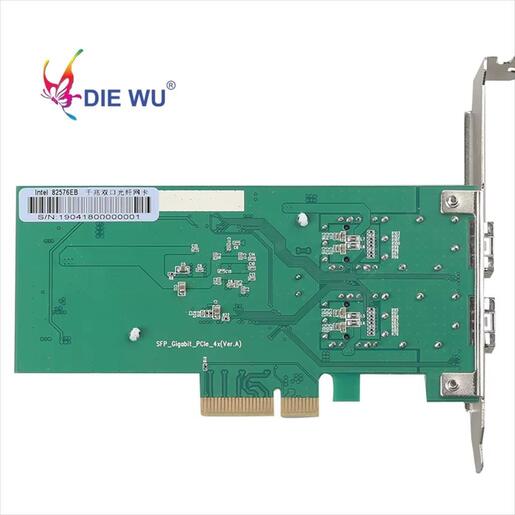

NET LAN PCIe SFP dual port 10/100/1000Mbs , DIEWU TXA067, Chipset: Intel/I82576ID EK000697080

Model name: DIEWU TXA067

Specifications:

• Chipset: Intel /82576 Ethernet Controller
• Port number: SFP+ Slots *2
• Standard: IEEE802.3(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX), LC
• Data rate: 10/100/1000/Mbps
• Interface: PCI express 4x
• LED Indicator: 2 (1/port, Link (solid) and Activity (blinking))
• Dimension: 128.3*68.9*15.9mm
• Support OS: Windows Vista SP1, Windows Server 2003 SP2, Windows Unified Storage Solution 2003, Windows Server 2008, Linux Stable Kernel version 2.6, Linux RHEL 4, Linux RHEL 5, Linux SLES 9, Linux SLES 10, FreeBSD 7.0, UEFI 1.1, VMware ESX 3.x
• Operating Temperature: 0℃ - 55℃
• Environment: Relative Humidity: 10%-90%(non-condensing)
• Storage Temperature: -0℃ - 80℃
• Relative Humidity: 5%-90%(non-condensing)
• Speed/port: 10Gbps (fiber for servers and workstations)
• Ethernet controller: Intel 82599ES
• Connector and cable medium: LC fiber optic
• Cabling type: MMF 62.5/50µm, up to 300m
• Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 8 lane
• Ports: two SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables
• Bus type: PCI express 2.0 (5 GT/s)
• Bus width: PCI-E x 8/x 16
• Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE
• Other Features: Network standards: IEEE 802.3, Interrupt levels: INTA, MSI, MSI-X
• Supported slot height(s): low profile and full height
