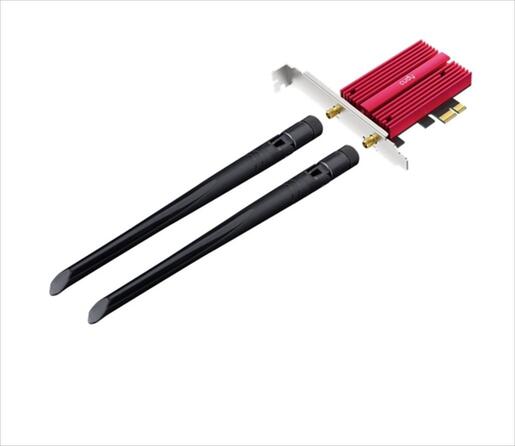

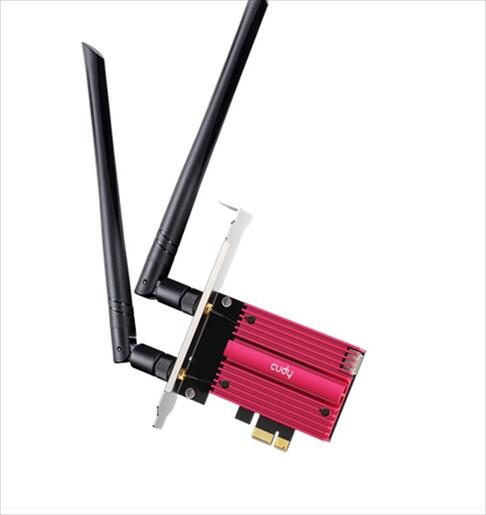

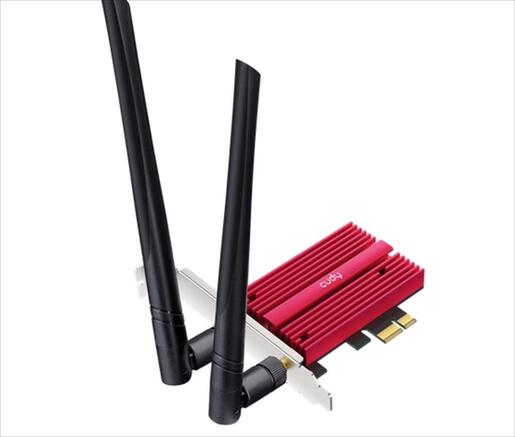

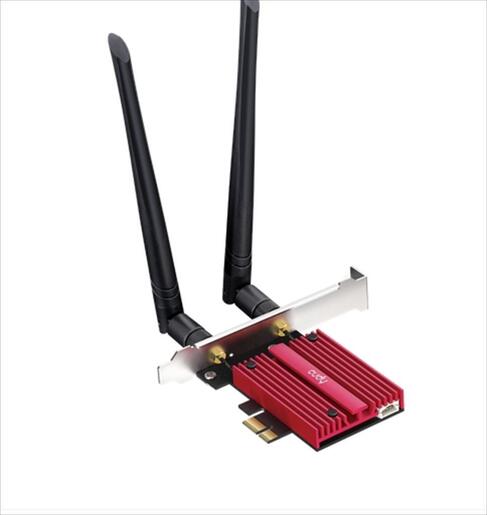

NET LAN WIRELESS PCI-E CUDY BE9300 Tri-Band WiFi 7, BT 5.4, WE9300ID EK000696816

Model name: CUDY BE9300

Specifications:

• CPU Chipset: Intel BE200
• Wireless:
  • 6 GHz Wi-Fi Speed: 5760 Mbps
  • 5 GHz Wi-Fi Speed: 2882 Mbps
  • 2.4 GHz Wi-Fi Speed: 688 Mbps
  • 6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Detachable
• 6 GHz Antenna Gain Max: 5.32dBi
• 5 GHz Antenna Gain Max: 4.54dBi
• 2.4 GHz Antenna Gain Max: 3.09dBi
• Detachable Wi-Fi Antennas Connector: RP-SMA Female
• Reliability – Environment:
  • Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Requirements – Hardware:
  • Requires a PCI-E 1x or higher standard slot on the motherboard for WiFi function
  • Requires a USB 9-PIN slot on the motherboard for Bluetooth function
• Compatible OS: Windows 11 64-Bit, PC with Intel CPU
• Driver Installation: Manual driver installation for Windows. Driver available in the Download Center.
• Certifications: FCC, CE
