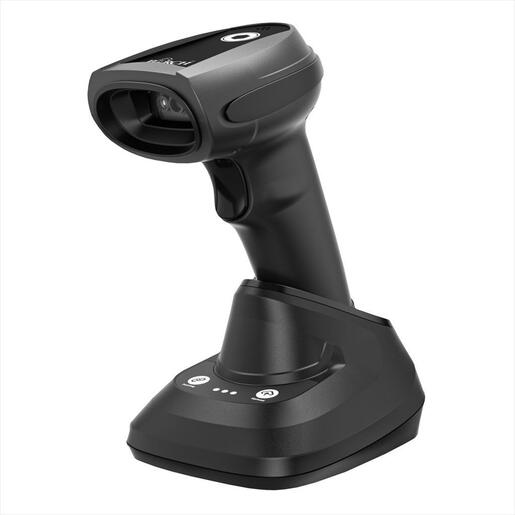

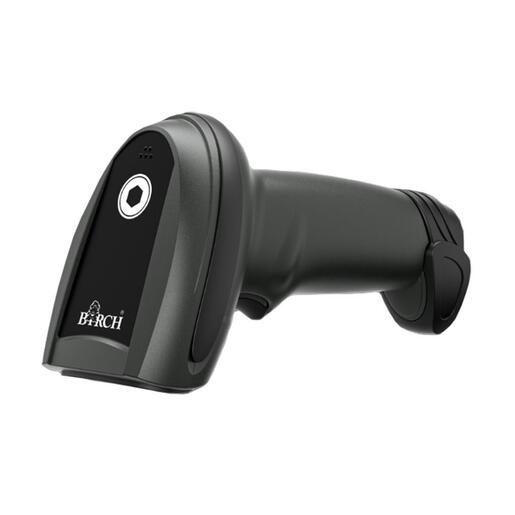

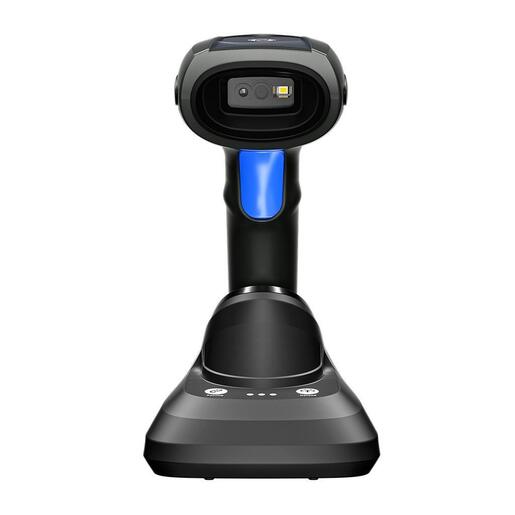

BARCODE BIRCH BD-6510T 2D WIRELESS 60fps, w/Cradle and bluetoothID EK000695568

Model Name: BIRCH BARCODE BD-6510TB

Specification :

• OS: Windows/IOS/Android
• Image Sensor: CMOS
• Image (Pixels): 1280(H) x 600(V) pixels
• Light Source: Aiming 625 mm LED (Illumination: 4000K LED)
• Scan Mode: Handheld (Manual)/Handsfree (Automatic)
• FPS Frame Rate: 60fps/s
• Scan Accuracy: 4mil Code39 ≥ 20%
• Print Contrast: Red, blue and green LED lights, Buzzer and motor vibration
• Transmission Range: 2.4G: 100 meters, Bluetooth HID: 50 meters (On open air)
• Scan Angle: Left and right ± 55°
• Field of View: 41° horizontal, 28° vertical
• Work Frequency: 2.400GHz - 2.480GHz ISM
• Dimension L x W x H: 174 x 66 x 95 (mm)
• Weight: 200g
• Case Material: ABS-PC, TPU
• Memory Capacity: 350000 byte
• Power Parameter: Input Voltage: 5VDC ± 5%, Working current: 400mA
• Firmware Update: Computer online upgrade
• Scan Distance: 25-300mm EAN 13mil PCS-100%, 30-350mm QR 20mil PCS-100%
• Battery Parameters:
  • Battery Capacity: 2000mAh
  • Charge Mode: Wire charging/seat charging
  • Charge time: 5h
  • Working time: 12h (continuous scanning)
• Environmental Parameters:
  • Operating Temperature: -10°C ~ 60°C
  • Working Humidity: 5% to 95% relative humidity, non-condensing
  • Storage Temperature: -40°C ~ 70°C
  • Protection: IP54 (Direct charging, Anti-static electricity, Drop resistance 2M)
• Decoding Capability:
  • 1D: UPC/EAN/JAN, UPC-A & UPC-E, EAN & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW-7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS-14, RSS-Limited, RSS-Expand, etc.
  • 2D: QR Code, PDF417, Data Matrix, Aztec, Maxicode, Dotcode, GS1 DataBar Stacked, etc.
  • OCR/Passport, ID card, Car ID, etc.
• Cradle Parameters:
  • Dimension L x W x H: 122 x 75 x 29 (mm)
  • Weight: 132g (No with cable)
  • Key-press: One key pairing, One key uploading data
  • Paired Mode: One to one or one to more (Optional)
  • Cable: Standard 1.5M straight
• Power Parameter:
  • Input Voltage: 5VDC ± 5%
  • Working current: 400mA
